Mousetrap Expansion Parts These parts add additional probing points to a Mousetrap.  The J-Bar clamps to the Mousetrap and the Probe Holder clamps to the J-Bar

'; document.forms['Form0'].method='post'"> per Cartridge Please note that the picture shows a blank Cartridge installed in a Mousetrap.  This Mousetrap is in the open position.  See the Mousetrap System for the closed position.  The Cartridge consists of the 3 G-10 plates (in green), the 4 springs (between the bottom and middle plates, the 4 guide rods (1 through each corner of the bottom and middle plates),  and mounting hardware. Note also that the J-Bars and Clamp Bars (the J-Bars attach between the Clamp Bars, see Mousetrap System for a picture) have been removed.  This step is not necessary, but it does allow them to be used elsewhere. As a final note, it is possible retain the Clamp Bars on 1 frame (usually the upper frame) to allow J-Bars and hold-down fingers to be used instead of the top G-10 plate.  This allows clearance for manual probing of the UUT, if desired.

New Cable Converter Boards Connect one of these boards to a 100-pin or 68-pin HD cable to gain easy access to all cable signals. See the bottom of this page for details and an example.

" > "> Probe, Cable and J-Bar are available separately '; document.forms['Form1'].method='post'"> each

This is what you're buying. --> <--- This is what it looks like when in use.

" > "> '; document.forms['Form2'].method='post'"> each

Cable Converter Boards (CCBs) provide an easy interface between standard 100 and 68-pin High Density cables, as used on many PXI- and PC-based instrument cards, and the outside world.All boards are wired pin-to pin, from the connector to jumper pins. Connecting a 64-ch DAQ (100-pin HD connector) to a wirewrap board is now easy.   Disconnecting the DAQ is now easy too, since the CCB can be mounted to the wirewrap board. If you've ever wanted to make a couple of jumper connections to a cable, CCBs make it easy and reliable. There is plenty of room for many J-hook connections. All boards are wired pin-to-pin. All boards are available with male or female connector (please specify) Type: 100-pin HD        Size:    2.875” x 3.875”      $105 each Available with 2-row pin connector (shown) or Centronics-style connector. The Centronics-style connector will not connect to a 2-row pin cable, and vice-versa. Most DAQ cards and DIO cards use the 2-row pin style.  Please check with the instrument manufacturer Type: 68-pin HD        Size:    2.875” x 3.875”        $80 each Available with 2-row pin connector (shown) or Centronics-style connector. The Centronics-style connector will not connect to a 2-row pin cable, and vice-versa. Most DAQ cards and DIO cards use the 2-row pin style.  Please check with the instrument manufacturer Type: 34-pin IDC        Size:   2.875” x 1.0”              $40 each This fits the widely available standard 34-pin IDC ribbon cable Type: DB-9            Size:  Twin 1.25” x 2.5”             $40 each                           This is 2 of the single units that are still joined together                        Size: Single 1.25” x 1.25            $25 each Other styles under consideration: 40-pin IDC 50-pin IDC micro 50- and 68-pin SCSI II and SCSI-III Is there a style that you want, but don't see? Make a suggestion at "info "at" mousetrap-solutions.com"

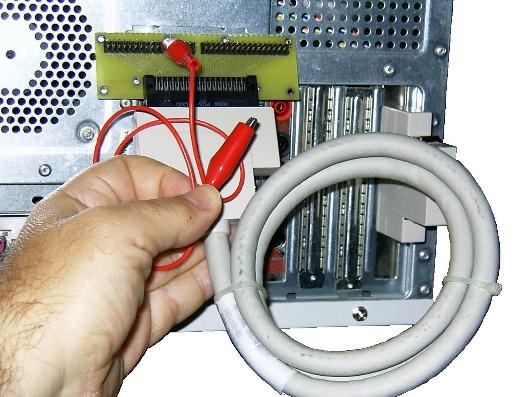

Example: 68-pin CCB connected to a 16-ch DAQ. DAQ boards are neat things to have.  They have many features, but connecting to them used to be a bit of a problem. The CCB makes connecting to individual lines easy.  Pick the desired lines and use wire-wrap or a jumper to make a connection. The CCB can be mounted to a chassis and the DAQ cable can be connected and disconnected quickly and easily
